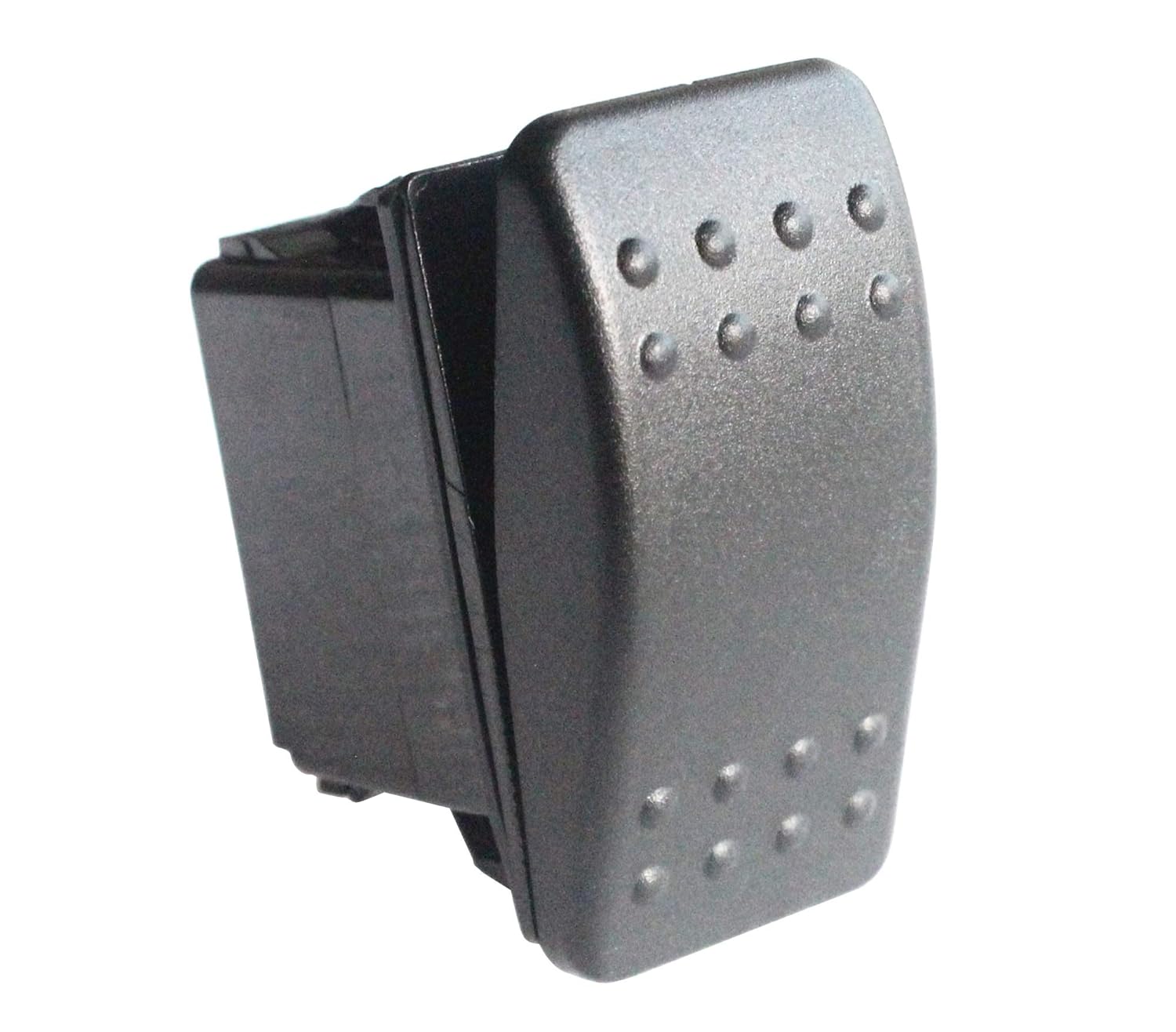

IndusTec DPDT 30 Amp 12V 3 Postion On/Off/On Maintained Latch Lock DC Motor Polarity Reversing Control Rocker Switch Double Pole Double Throw : Industrial & Scientific

Description

See more product details Amperage ratings on switches are good for the voltage and current type printed only. However voltage ratings are good from the stated voltage down ac or dc. So this switch is good to use for up to 15 Amps at 250 VAC and all ac voltages below that. But below that the amperage rating would be higher. The switch is rated for 30 amps at 12V DC 40 PEAK 20 amps @ 24V DC Hook the battery to any two side by side pins and motor to any other two side by side pins POLARITY WILL SWITCH AS YOU ROCK THE SWITCH ONE WAY OR THE OTHER Other Known Part Numbers 129-PR-MOM KCD2-7-223-B This is a must have for the DIY or Inventor in the family ( It will return spring automatically to OFF center position when released ) Cut out is standard .83 x 1.48 or about 7/8" X 1 1/2" More precise is .83 X 1.48 which = 21 MM X 37.5 MM Just pop it in
